Number of displays supported |
1 |
|
Maximum screen size |
152.4 cm (60") |
|
Mounting type |
Wall |
|
Maximum weight capacity |
56.8 kg |
|
Minimum VESA mount |
200 x 200 mm |
|
Maximum VESA mount |
600 x 400 mm |
|
Minimum screen size |
116.8 cm (46") |
|
Panel mounting interface |
200 x 200,300 x 300,400 x 400,400 x 300,600 x 400 |
|
Distance to the wall (min) |
8 cm |
|
Distance to the wall (max) |
35.1 cm |
|
Product colour |
Black |
|
Width |
540 mm |
|
Depth |
370 mm |
|
Height |
545 mm |
|
Weight |
15.5 kg |
|
Package width |
771 mm |
|
Package depth |
114 mm |
|
Package height |
600 mm |
|
Package weight |
17.4 kg |
|
Compliance certificates |
RoHS |
|
Harmonized System (HS) code |
85299097 |
|
Brand |
Peerless |
|
Type |
Mounts |

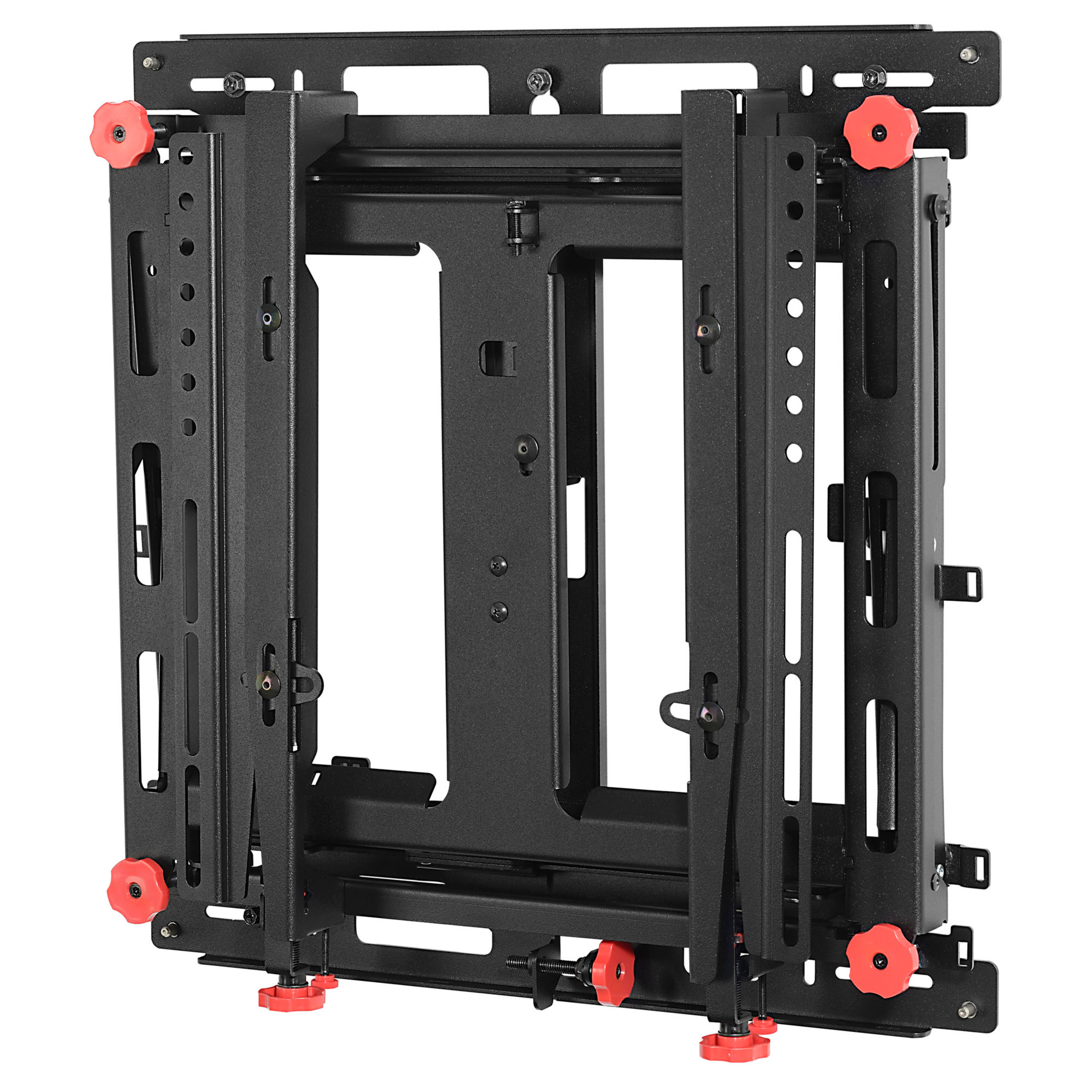

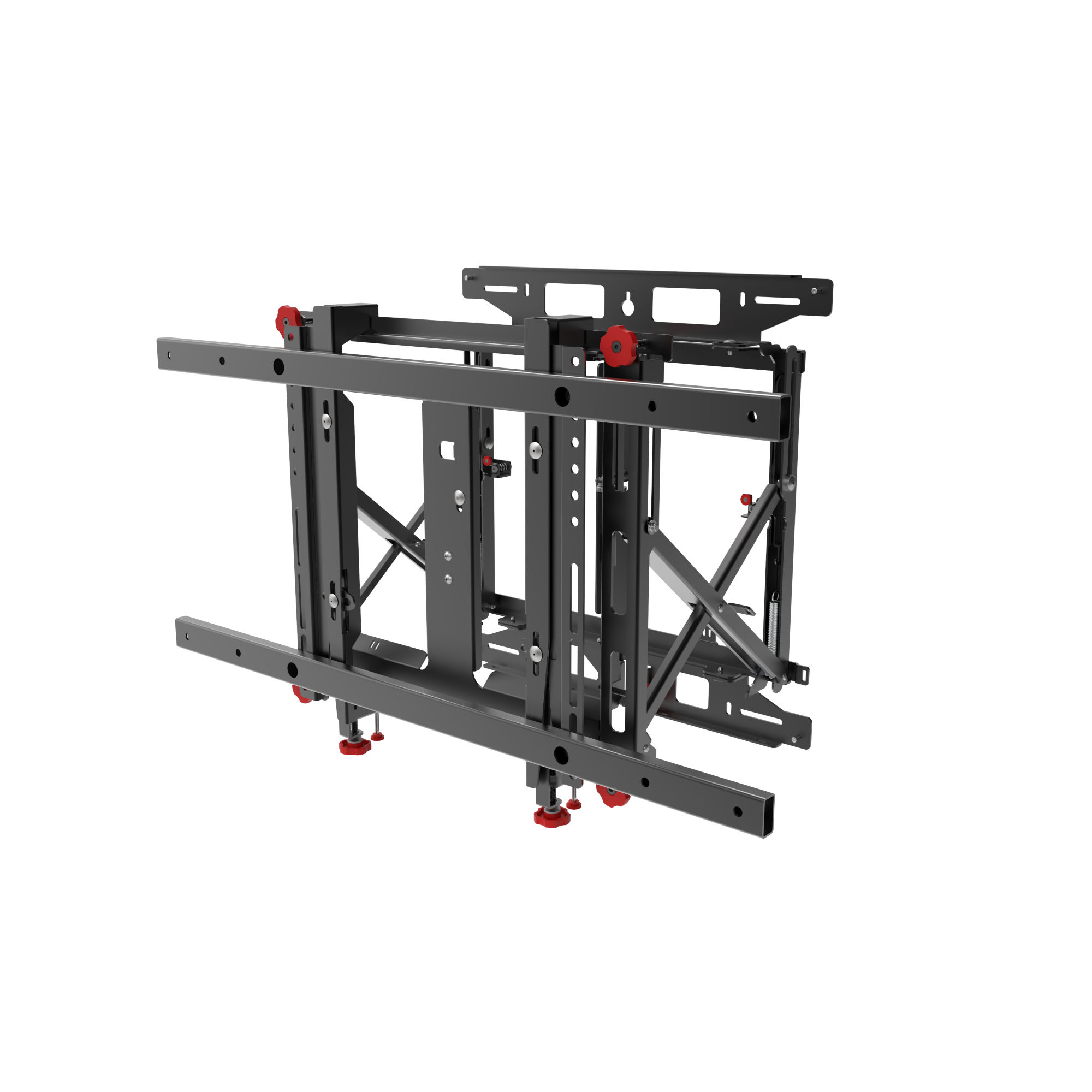

Peerless-AV’s Supreme Full Service Video Wall Mount with Quick Release raises the bar of excellence with an enhanced feature set centered on ease of install and display alignment. With the addition of tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustment on each of the X, Y and Z axis. Serviceability is easier than ever before, with a gentle press to release, any display in the video wall configuration can be quickly extended for maintenance. Reusable spacers can be used for both portrait and landscape applications resulting in a faster install and lower cost. Enhanced cable management allows the cables to effortlessly travel in and out with the display, preventing them from getting pinched or pulled loose when extended.
